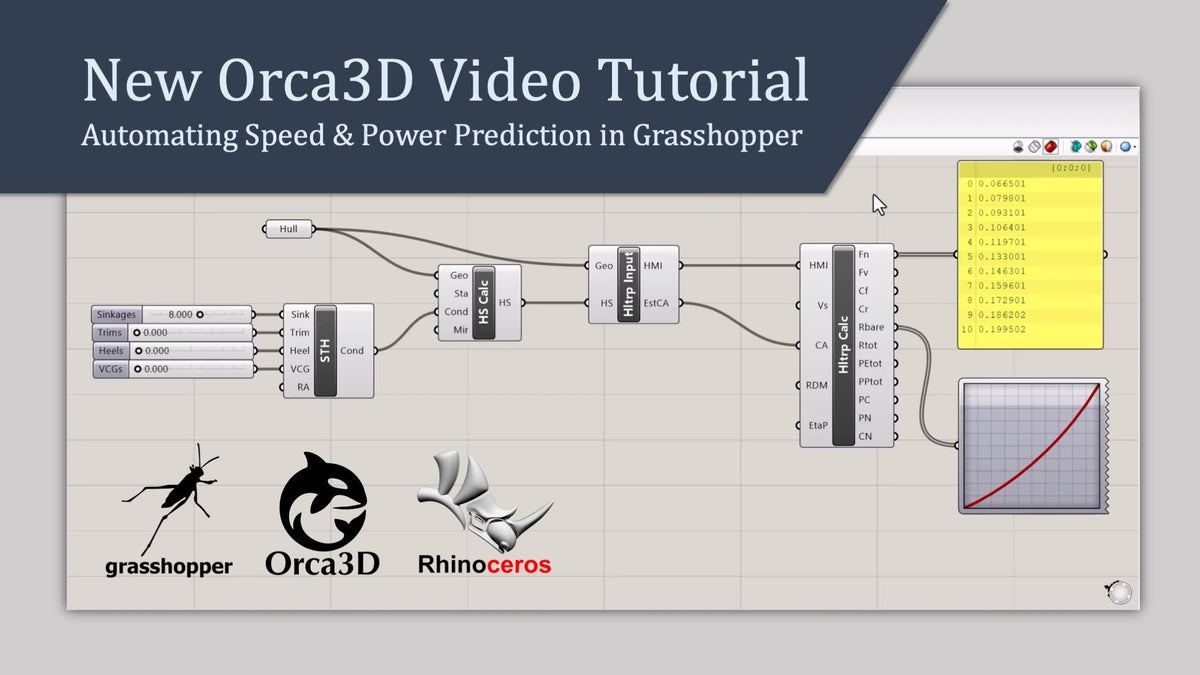

New Orca3D Tutorial: Automating Speed & Power Prediction in Grasshopper
Introduction
For naval architects and marine designers, evaluating vessel hydrodynamic performance isn't a one-time calculation; it's an iterative process. Small adjustments to hull geometry, displacement, or operating conditions can have a meaningful impact on resistance and required propulsion power.
That's where parametric design and analysis becomes especially valuable.
We're excited to announce a new Orca3D tutorial that walks through building a complete parametric speed and power analysis workflow using Orca3D Grasshopper components. Whether you're already using Grasshopper to automate design studies or you're just beginning to explore computational workflows, this tutorial provides a practical, step-by-step guide to building repeatable analyses inside Rhino.
From Hydrostatics to Performance Prediction
The tutorial begins by briefly reviewing one of the foundational aspects of any fessel design: hydrostatics.
Using Orca3D Grasshopper components, you'll learn how to analyze your vessel's hydrostatic properties before moving into resistance prediction. The workflow covers:
- Importing geometry from Rhino or generating geometry directly in Grasshopper
- Defining vessel loading conditions
- Creating sinkage, trim, and heel input conditions
- Running an Orca3D hydrostatics calculation
- Configuring mirrored or full-hull geometry correctly
Once these building blocks are in place, the tutorial transitions into the primary focus: parametric resistance and power prediction.
Building a Complete Holtrop-Mennen Workflow
The heart of the tutorial demonstrates how to assemble a complete Holtrop-Mennen analysis using Orca3D's Grasshopper components.
Rather than treating resistance prediction as a black box, the video explains how each component fits into the overall workflow, including:
- Input Generators
- Input Override components
- Holtrop Calculation components
- Correlation allowances
- Speed lists
- Design margins
- Propulsive efficiency calculations
By understanding how these components interact, users can create flexible Grasshopper definitions that are easy to modify, reuse, and automate across multiple design iterations.
The tutorial also discusses situations where engineers may want to manually override automatically generated parameters, allowing greater control when dealing with hull forms that don't fit neatly into standard assumptions.
More Than a Single Calculation
One of the biggest advantages of Grasshopper is its ability to automate repetitive engineering tasks.
Instead of manually running individual analyses for every design variation, engineers can create workflows that evaluate dozens of alternatives by simply changing input parameters.
The resulting workflow enables designers to quickly compare performance across multiple operating speeds and examine outputs including:
- Bare hull resistance
- Total resistance
- Effective power
- Required propulsive power
These outputs can then be connected directly to Grasshopper visualization tools, graphs, or external applications for additional analysis and reporting.
Designed for Real Engineering Workflows
One particularly useful section of the tutorial demonstrates how Grasshopper can stream calculation results directly to external files.
This capability makes it easy to:
- Export analysis data
- Feed results into spreadsheets
- Connect with other optimization tools
- Build automated reporting workflows
- Support larger parametric design studies
For firms exploring design automation these capabilities can significantly reduce repetitive manual work while improving consistency throughout the design process.
Continuing to Expand Orca3D's Grasshopper Capabilities
This tutorial is part of Orca3D's ongoing investment in educational resources for the marine design community.
Over the past several releases, Orca3D has continued expanding its Grasshopper component library, making it easier for designers to combine Rhino's powerful parametric modeling environment with Orca3D's naval architecture calculations.
Whether you're developing conceptual vessel designs, performing trade studies, or building custom engineering workflows, these tools help bring computational design techniques into everyday marine engineering practice.
Watch the Complete Tutorial
The full 6-minute tutorial walks through every step of the workflow in detail, providing practical examples and explanations that users can immediately apply to their own projects.
If you're interested in expanding your Grasshopper workflows, or simply learning more about what's possible with Orca3D, we encourage you to watch the complete video.
Be sure to subscribe to the Orca3D YouTube channel and explore our growing library of technical tutorials, product demonstrations, and engineering resources designed to help you get even more from Orca3D.
