  • "A rendering of a 100 foot Gulf of Alaska research vessel we are doing for State of Alaska, Department of Fish and Game. We used Orca 3D for the hull and foscle."
    -Patrick Eberhardt, Coastwise Corporation

    Download an evaluation copy>>

Naval Architecture in Rhino

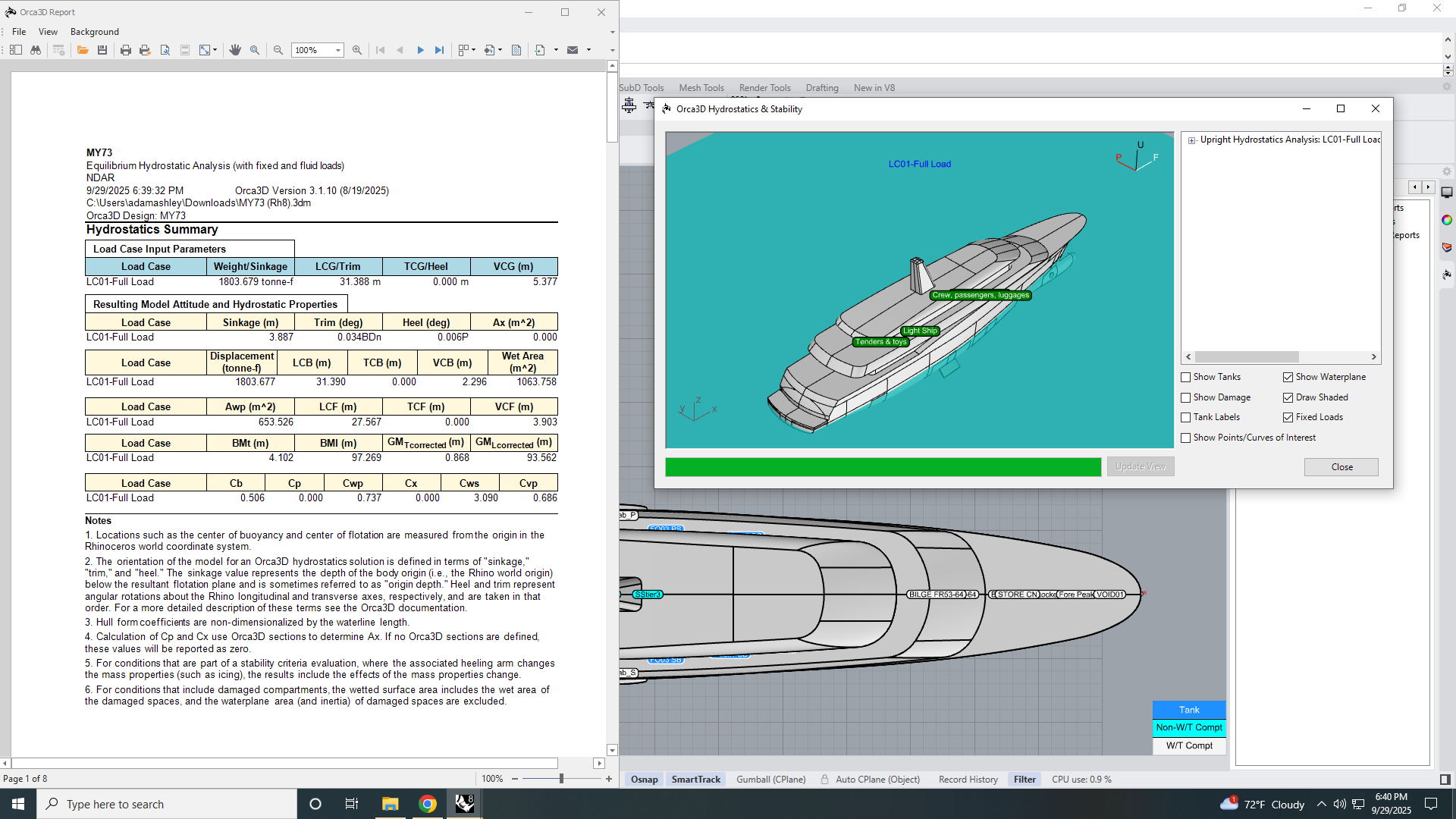

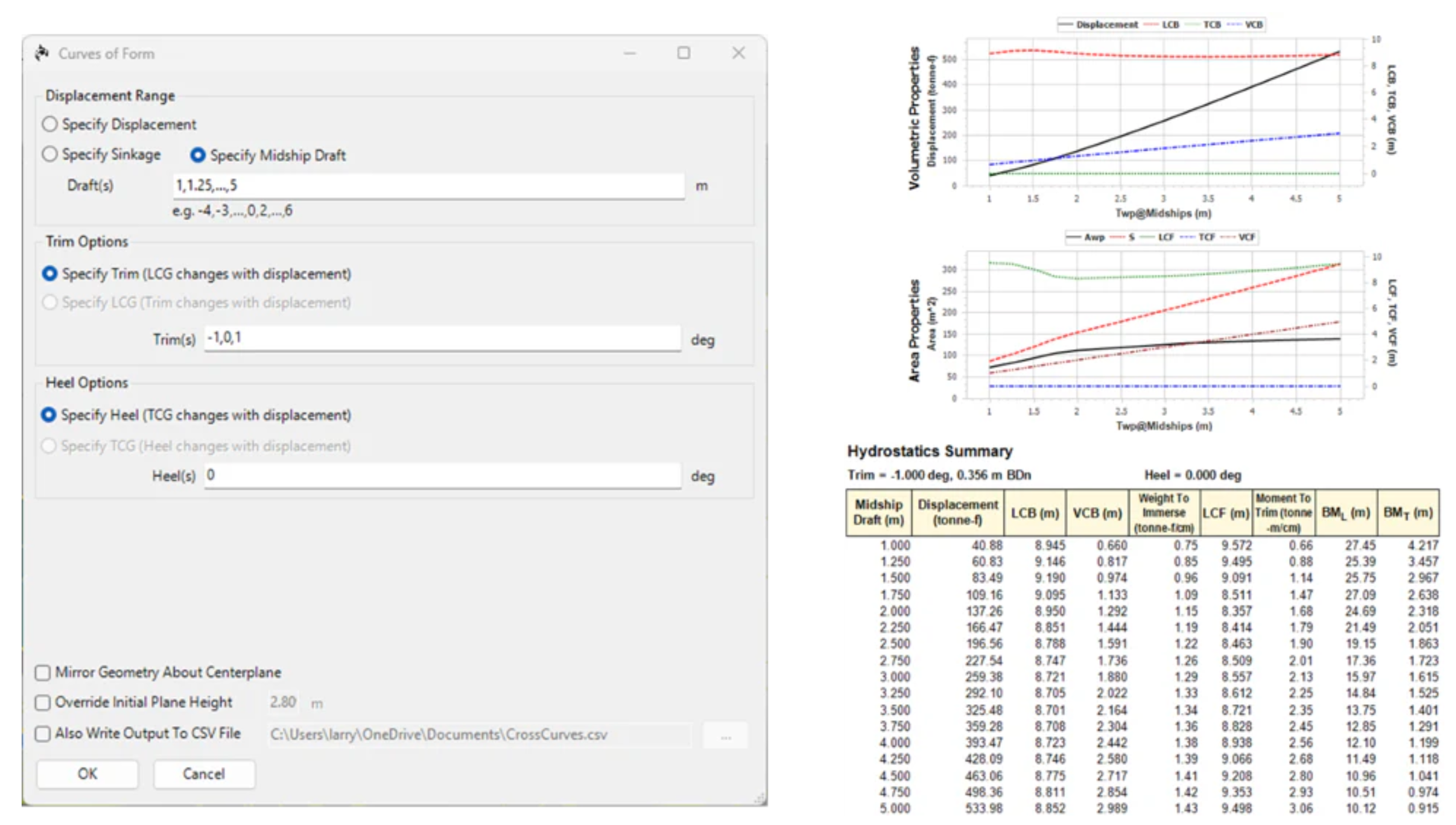

We believe that the best software supports your creativity and doesn’t get in the way. Orca3D is developed with that in mind; it streamlines your design process with intuitive marine design tools that run within the Rhino 3D environment. Conceptualize, model, and analyze, all without transferring files or learning a new program. Create and fair your hull, deck, and superstructure surfaces, analyze hydrostatics and stability, predict speed vs. horsepower, and track the weight, center of gravity, and cost of your design, all within the comfort of the Rhino environment. By itself, Rhino is an extremely powerful design tool; when you add Orca3D’s marine-specific tools, it becomes the most versatile and cost-effective marine design program available.



Modules

Orca3D contains four modules, and is sold in two packages:

Level 1

Level 2

Includes Level 1 modules, plus

Standalone, Network, and Educational licenses are available, either directly or through our network of resellers. Well over 1,000 users have discovered the power, flexibility, and ease of use of Orca3D, including shipyards, yacht designers and builders, navies and coast guards, students, and hobbyists.
